80Ton Truck Crane XCT80L5 Telescopic Truck Crane Boom Mobile Lifting Crane
Product Description of XCT80L5 Telescopic Truck Crane Boom Mobile Lifting Crane
XCT80L5 is the only crane in the industry that adopts "K" shaped legs (commonly known as "swing leg") in this ton class, and it is a two-stage telescopic control. The operation mode is to first swing the leg, then extend the second section, after full extension, the first visual feeling is solid.Indeed, the k-leg is capable of lifting a great deal more weight forward and laterally than the h-leg with the fifth leg.
5 sections of single board boom head design, double cylinder rope row expansion mode, main boom full extension length of 50.5 meters, standard 17.5 meters fixed auxiliary arm, more than 30 meters bridge construction, plant equipment installation and other high-frequency conditions leading more than 10%, the industry operating efficiency is the best.The total weight is 16 tons.
Specification of XCT80L5 Telescopic Truck Crane Boom Mobile Lifting Crane
| Description | Unit | Parameter value |
| Overall length | mm | 15000 |
| Overall width | mm | 2750 |
| Overall Height | mm | 3990 |
| Wheel Base | mm | 2000+4000+1350 |
| Track | mm | 2353/2353/2063/2063 |
| Total vehicle mass in travel configuration | kg | 50000 |
| Axle load | kg | 12000/12000/13000/13000 |
| Engine Model | | MC11.40-50 ,MC11.40-60 |
| Engine rated power | kw/(r/min) | 297/1900,297/1900 |
| Engine rated torque | N.m/(r/min) | 1900/1000-1400,1907/1000-1400 |
| Max. travel speed | km/h | ≥90 |
| Min. travel speed | km/h | 2.5～3 |
| Min. turning diameter | m | ≤24 |
| Min. ground clearance | mm | 303 |
| Max. grade ability | % | 47 |
| Approach angle | ° | 20 |
| Departure angle | ° | 14 |
| Braking distance | m | ≤10 |
| Oil consumption per 100km | L | 44 |
| Max. total rated lifting capacity | t | 80 |
| Min. rated range | m | 3 |
| Turning radius at turntable tail | mm | 4260,4290 |
| Outrigger span Longitudinal | m | 7.8(7.16) |
| Outrigger span Lateral | 7.9(5.9) |
| Base boom | m | 13.3 |
| longest boom | 50.5 |
| Longest main arm + second arm | 75.5 |
| Max. slewing speed | r/min | ≥2.0 |

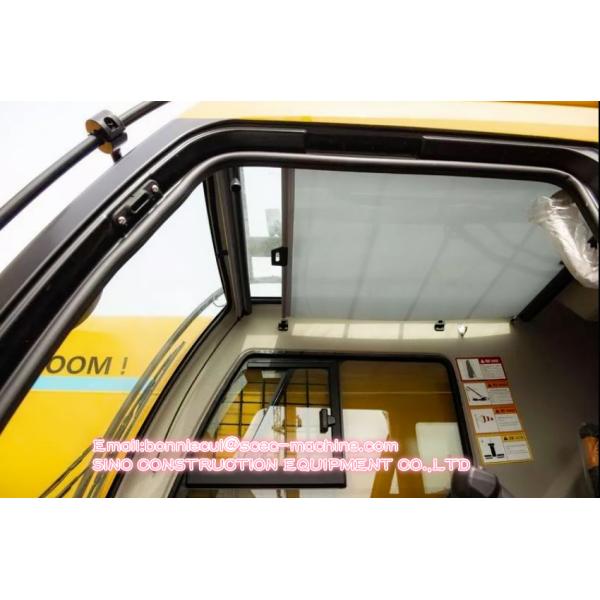

Photo of XCT80L5 Telescopic Truck Crane Boom Mobile Lifting Crane
